Product Description:

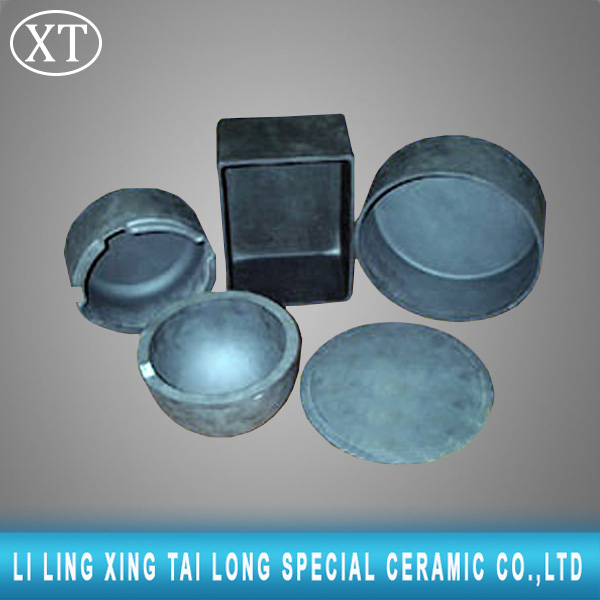

Our graphite crucibles offer high performance with good technical and economic effect. They are used in metallurgy, casting, chemical and (scientific) industry in general; they are also used to produce metal melting including gold, sliver,coppper, etc.
Features of graphite crucible :
- Fine grain and high density
- Homogeneous structure
- Excellent thermal conductivity
- High mechanical strength
- Proper electrical conductivity
- Minimum wettability to molten metals
- Various sizes machined as per requirements.
|
Bulk Density |
g/cc |
1.60-1.88 |
|
Specific Resistance |
μΩ.m |
6.0-15.0 |
|
Compressive Strength |
MPa |
30-80 |
|
Bending Strength |
MPa |
20-45 |
|
Shore hardness |
|
30-70 |
|
C.T.E.(100-600°C) |
x10-6 /°C |
2.5-5.5 |
|
Ash |
% |
0.01-0.2 |
|
Maximum Grain Size |
mm |
0.044-0 |
Note: SIZE No. represents Melting Capacity of copper in kilo. The Silicon Carbide Crucible is suitable for melting such metals as copper, gold, silver, zinc, Aluminium, lead .etc. SIZE NO. Also represents capacity of molten copper in kilo.
