Application

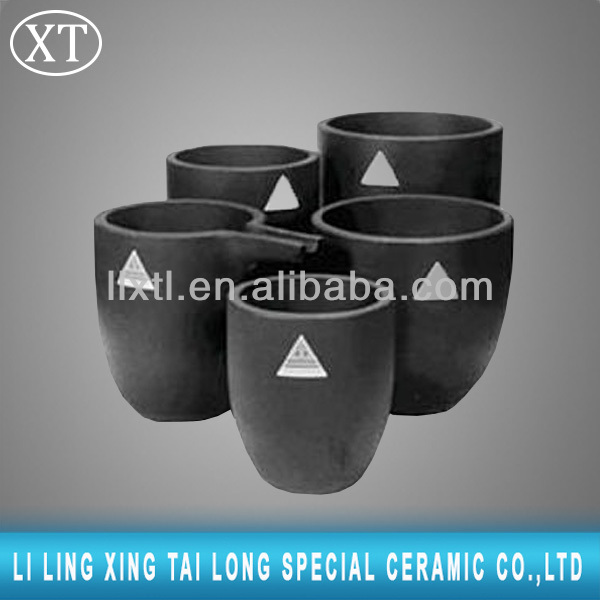

Graphite crucibles are used for melting or casting particular amorphous metals, rare metals and non-ferrous metals/ alloys.
Superiority
We offer high quality graphite crucibles that can withstand high temperatures and are used in the melting of metals like gold, silver, copper and aluminium and other precious metals. It is used in the jewellery making and dentistry casting. These graphite crucibles are resistant to thermal shocks and chemical erosion. We also offer these products at very competitive prices.
Typical Sizes
Diameter (mm) 35,40,45,50,60,75,100,120,150,175,200,250,300
Length (mm) 550 — 2200
Other diameters and lengths are available on request.
Technical Index
|
|
Unit |
Value |
|
Bulk Density |
g/cm3 |
1.65-1.80 |
|
Compressive Strength * |
MPa |
20-55 |
|
Bending Strength * |
MPa |
10-30 |
|
Elastic Modulus * |
GPa |
9-21 |
|
Specific Resistance * |
μ Ω·m |
5.0-15.0 |
|
Ash |
% |
0.05-0.5 |
Type S: Clay graphite crucible for AL melting
Type D: Isostatic pressing graphite crucible
Cite from CNS China National Standard of Graphite Crucible, which is solely drifted by XTL company.
About us:
Liling Xingtailong special ceramic Co., Ltd., as a manufacturer and exporter, is mainly specialized in the R&D of Carburant, Graphite product and Carbon materials which are widely used in many industrial fields. Our company is located in the famous coastal city - Qingdao, and excellent geographical environment and convenient transportation bring more favorable conditions for long-term cooperation and development.
