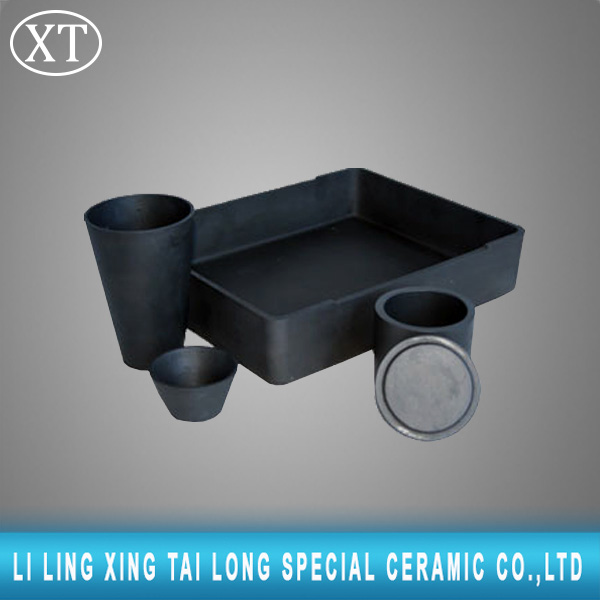

  Realible Manufacturer Produce High Purity Graphite Crucible

Product Description



Specifications from the graphite crucible :



1.Long working lifetime: its working lifetime is increased 3-5 times over normal clay-crucible due to the compact body formed under    high pressure.



2.High thermal conductivity: high-density body and low apparent porosity greatly improve its heat conductivity.



3.New-style materials: new heat conduction material ensures faster heat conductivity and pollution-free product, reduces adherent slag.



4.Resistance to corrosion:better anti-corrosion than normal clay-crucible.



5.Resistance to oxidation: advanced process dramatically improves its oxidation resistance, which ensures persistent heat conductivity and long working lifetime.



6.High-strength: high-density body and logical structure make the product better compression property.



7.Eco-friendly: energy-efficient and pollution-free, not only ensure metal product purity, but also ensure sustainable development on environment.



Bulk Density

g/cc

1.70-1.88

Specific Resistance

μΩ.m

6.0-15.0

Compressive Strength

MPa

30-80

Bending Strength

MPa

20-45

Shore hardness



30-70

C.T.E.(100-600°C)

 x10-6 /°C

2.5-5.5

Ash

%

0.01-0.2

Maximum Grain Size

mm

0.044-0




Our Services

Why choose Xingtailong?

High puriy material make sure high max working temperature,

Tight tolerance make sure the right installation.

Large quantity in stock ensured fast delivery.

Large capacity reduce materical prices.

Our service of Xingtailong:

Inquiry response: Your inquiries will be replied in 24 hours.

Sample support: Two free samples are available in 3~5days.

Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.

Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only) We can supply the products according to customer's drawings, samples and performance requirement.
