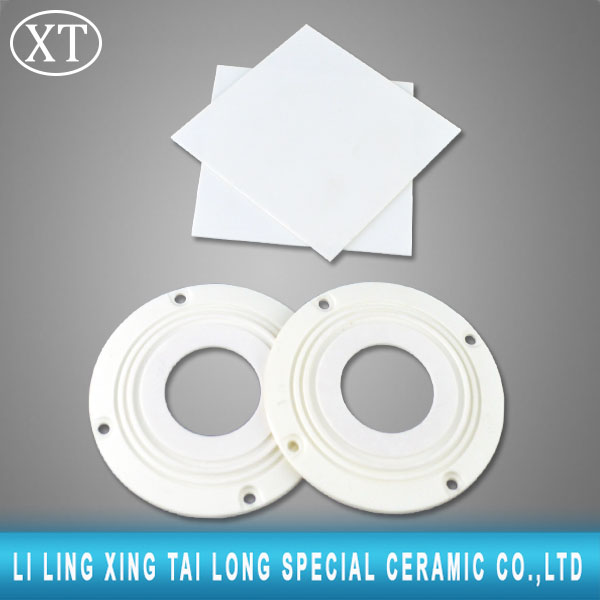

  High quality Ceramic Alumina PCB Plate Substrate For Electronic Purpose
Product Description



1. For this plate,mainly the Alumina content is 96% and 99%.

2. It has the features of high reliability,high density power.

3. High thermal conductivity,high insulation and cycling performance.

4. Dimensions can be formed be mould stamping or laser cutting,

5. It is used in thick film circuit,large-scale integrated circuit,hybrid IC,semiconductor package,chip resistor and other electronic industry fields.



Property content

Property index

Density(g/cm3)

≥3.30 g/cm3

Water absorption (%)

0

Thermal conductivity(20°C, W/m.k)

≥170

Linear expansion coefficient (RT-400°C,10-6/°C)

4.4

Flexural strength (MPa)

≥330

Bulk resistance (Ω.cm)

≥1014

Dielectric constant(1MHz)

9.0

Dissipation factor (1MHz)

3×10-4

Dielectric strength (KV/mm)

≥15

Surface roughness Ra(μm)

0.3~0.5 (≤20nm)

Camber (~/25.4(length))

0.03~0.05

Appearance

Dense
