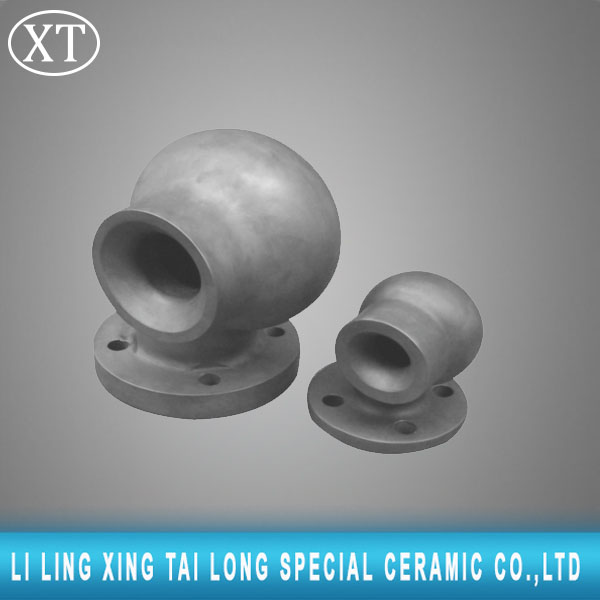

SiSic Silicon Carbide Ceramic Wear Resistant Silicon Carbide Ceramic Nozzle, Plate |
|
|
 |
 |
Product Description
|
Wear Resistant Silicon Carbide Ceramics |
Application: The Reaction Bonded Silicon Carbide Ceramic (RSIC/SISIC) is an ideal wear resistant material, which is especially suitable for the strong abrasive, coarse particles, classification, concentration, dehydration and the other operations. |
| It is widely used in mining industry, steel industry, coral processing industry, chemical industry, raw material-making industry, mechanical sealing, surface sandblasted treatment and reflector etc. Thanks to the excellent hardness and abrasive resistance, it can effectively protect the part where need wear protection, so as to prolong the service life of the equipment. |
Specifications:
|
Item |
Unit |
Data |
|
Temperature of application |
℃ |
1380℃ |
|
Density |
G/cm3 |
>3.02 |
|
Open porosity |
% |
<0.1 |
|
Bending strength |
Mpa |
250 (20℃) |
|
Bending strength |
MPa |
280 (1200℃ ) |
|
Modulus of elasticity |
GPa |
330 (20℃) |
|
Modulus of elasticity |
GPa |
300 ( 1200℃ ) |
|
Thermal conductivity |
W/m.k |
45 (1200℃ ) |
|
Coefficient of thermal expansion |
K-1 ×10-6 |
4.5 |
|
Rigidity |
|
13 |
|
Acid-proof alkaline |
|
excellent |
Available Shape and sizes: Thickness: from 6mm up to 25mm Regular Shape: SISIC plate, SISIC Pipe, SiSiC Three Links, SISIC Elbow,
SISIC Cone Cyclone. Remark: Other sizes and shape are available upon requests.
Packaging: In carton box, packed in fumigat
Our Services
1.Why choose Xingtailong?
High puriy material make sure high max working temperature,
Tight tolerance make sure the right installation.
Large quantity in stock ensured fast delivery.
Large capacity reduce materical prices.
2.Our service of Xingtailong:
Inquiry response: Your inquiries will be replied in 24 hours.
Sample support: Two free samples are available in 3~5days.
Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.
Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only) We can supply the products according to customer's
|
|
|
|
 |
|
|
